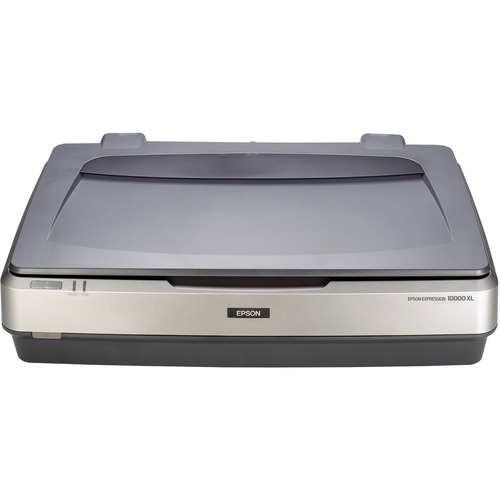

The Epson Expression 10000XL is a color flatbed image scanner. Ideal for professional photographers and graphic artists because of its 2400 x 4800 dpi resolution, it features the ColorTrue II Imaging System. This system combines extraordinary image processing, a Xenon lamp and Epson MatrixCCD technology for enhanced color and pinpoint registration. It can scan almost anything, including reflective media up to 12.2" x 17.2". This scanner speeds through every task to digitize images quickly and easily and offers optional accessories for increased productivity and remarkable results.
Features
Scanner Type: Flatbed
Document Handling: Flatbed Color Image Scanner
Resolution: 2400 x 4800 dpi Optical
Maximum Scan Size: 12.2" x 17.2"
Bit Depth: 48-bit Color, 16-bit Grayscale
Scanning Speed: Color 16.0 msec/line, Grayscale 5.3 msec/line, Line Art 5.3 msec/line
Connectivity: USB 2.0 and IEEE 1934 FireWire
Environments: PC and Mac Compatible
Warranty: 1 Year Limited Parts and Labor
Options
Epson Expression 10000XL Graphic Arts Scanner: Supplies and Accessories Options
Epson Expression 10000XL Graphic Arts Scanner Specifications
Part # E10000XL-GA
Key Specifications
Expression 10000XL Graphic Arts
Manufacturer
Epson
Manufacturer Part #
E10000XL-GA
Scanner
Type
Color Flatbed
Scanning Element
Epson MatrixCCD line sensor
Light Source
Xenon gas cold cathode fluorescent lamp
Operating Mode
Single-Pass
Resolution
2400 x 4800 dpi Hardware 12,800 x 12,800 dpi Interpolated
Max. Scan Area
12.2" x 17.2"
Scanning Speed
16.0 msec/line Color 5.3 msec/line Grayscale
Color Depth
48 bit
Grayscale Depth
16 bit
Connectivity
Hardware
USB 2.0 IEEE 1394 (FireWire)
Paper Handling
Document Feeding Mode
Manual Load
Document Size
12.2" x 17.2"
Software
Epson Scan with Epson Easy Photo Fix Technology MonacoEZcolor Adobe Photoshop Elements 2.0 ABBYY FineReader Sprint OCR
Additional Information
Additional Hardware
Hi-Speed USB 2.0 Cable
Additional Features
Optional Transparency Unit Optional Automatic Document Feeder
Reliability
100,000 cycle MCBF (mean cycles between failure)
Power Requirements
Voltage
100V-120V, 220V-240V
Consumption
45W operating w/o optional unit 55W operating w/optional unit 6W sleep mode w/o optional unit
Operating Conditions
Temperature
41ºF to 95ºF
Humidity
10% to 80%
Dimensions (W x H x D)
Unit
25.8" x 6.2" x 18.0"
Weight
Unit
28.7 lb
System Requirements
PC
PC with Pentium® II equivalent or higher processor 128MB (512MB recommended) USB 1.1: Windows 98SE, 2000 Pro, ME or XP USB 2.0: Windows 2000 Pro, XP Host Driver by Microsoft is required IEEE1394 (FireWire): Windows 2000 Pro, ME, or XP
Mac
G3 (with built-in USB) processor or higher 128MB (512MB recommended) USB 1.1: Mac OS 9.1 to 9.2.2, Mac OS X 10.2.x, 10.3.x USB 2.0: Mac OS X 10.2.7 or later IEEE1394 (FireWire): Mac OS 9.1 to 9.2.2, Mac OS X 10.2.x, 10.3.x
Warranty
One-year Limited
Includes in the Box
Epson Expression 10000XL Scanner CD-ROM with Scanning Software and Electronic Reference Guide CD-ROM with Adobe® Photoshop Elements 2.0 X-Rite Monaco EZcolor Software and Reflective IT8 Target Hi-Speed USB 2.0 Cable Power Cable Scanner Setup Poster Epson Expression 10000XL User's Guide
Epson Expression 10000XL Graphic Arts Scanner Features
Extraordinary image quality with 2400 x 4800 dpi resolution works together with Micro Step Drive technology to deliver brilliant clarity and detail.
Epson Micro Step Drive technology improves the quality of the sub scan resolution. The Epson Expression 10000XL uses a custom designed high-precision stepper motor mechanism in order to move the 2400 dpi CCD in “half-step” increments, thereby achieving a sub scan resolution of 4800 dpi. This system is ideal for scanning 35mm slides, fine art/line drawings, and other small originals that require critical sharpness, which is especially important for enlargements.
Smooth gradations with 48-bit color captures over 4 trillion colors and 4,096 shades of gray.
Enhanced color with ColorTrue II Imaging combines superior image processing, a long-lasting Xenon lamp, and Epson MatrixCCD technology for bold, vibrant scans. The scanner optics are comprised of precision glass lenses. These custom lenses are used to provide maximum resolving power. This, along with a 2400 dpi CCD, ensures remarkable image quality. The optical components are mounted in a matte black carriage. This helps maintain the precision alignment of the optics, and reduces any stray light or ghosting in the scanner. Dynamic Range Control is used to increase the exposure times of the CCD when scanning transparencies so that more data can be obtained from the shadow areas.
3.8 Dmax for precision reproductions accurately scans each image, including film and transparencies, for remarkable precision, even in shadow areas.
Batch scanning for increased productivity scans multiple images at one time and saves files to a PC (scans up to 48 35mm negatives, 30 35mm slides, eight 4" x 5" transparencies or six medium-format transparencies).
Epson Expression 10000XL Graphic Arts Scanner Included Items
Epson Expression 10000XL Scanner
CD-ROM with Scanning Software and Electronic Reference Guide
CD-ROM with Adobe® Photoshop Elements 2.0
X-Rite Monaco EZcolor Software and Reflective IT8 Target
Hi-Speed USB 2.0 Cable
Power Cable
Scanner Setup Poster
Epson Expression 10000XL User's Guide
Epson Expression 10000XL Graphic Arts Scanner Warranty Information
Warranty Length: One Year
Covers: Parts and Labor
Details: Epson warrants that the Epson product enclosed with this limited warranty statement and purchased and used in the United States will conform to the manufacturer's specifications and be free from defects in workmanship and materials for a period of one year from the date of original purchase. Should your Epson product prove defective during this period, please bring the product securely packaged in its original container or equivalent, along with proof of the date of original purchase, to your Epson dealer or Epson customer care center. Epson will, at its option, repair or replace on an exchange basis the defective unit, without charge for parts or labor.
Provider: Epson
Contact: Customer Relations: 1-562-276-1311 Automated Technical Support 1-800-922-8911 (Hours)
