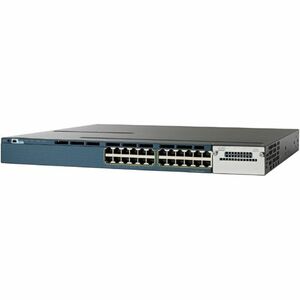

Cisco Catalyst 3560X-24P-S 24 Port Ethernet Switch

1016898845   Cisco
Free Shipping on Orders over $99!
SKU # WS-C3560X-24P-S
Your Price:
$2737.02

Quantity:

QTY 2 to 5
$2718.64

QTY 6 to 10
$2709.45

QTY 11+
$2700.25

Availability: In-Stock



Imageicon


The Cisco Catalyst 3560X Series Switches are an enterprise-class lines of stackable and standalone switches. These switches provide high availability, scalability, security, energy efficiency, and ease of operation with features such as Cisco StackPower, IEEE 802.3at Power over Ethernet Plus (PoE+) configurations. The Cisco Catalyst 3560X Series enhance productivity by enabling applications such as IP telephony, wireless, and video for borderless network experience.
  • Product Description: Cisco Catalyst 3560X-24P-S, switch, 24 ports
  • Device Type: Switch
  • Form Factor: Rack-mountable, 1U
  • Dimensions (WxDxH): 17.5 in x 18.1 in x 1.8 in
  • Weight: 15.7 lbs
  • RAM: 256 MB
  • Flash Memory: 128 MB
  • Ports Qty: 24 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
  • Data Transfer Rate: 1 Gbps
  • Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
  • Empty Slots: 1 x Expansion Slot
  • Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH
  • Communication Mode: Half-duplex, full-duplex
  • Features: Hot swap module replacement, layer 3 switching, layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+)
  • Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
  • Power Over Ethernet (PoE): Yes
  • Power: AC 120/230 V ( 50, 60 Hz )
  • Manufacturer Warranty: Limited lifetime warranty
  • Power Redundancy: Optional

General
Device Type: Switch
Enclosure Type: Rack-mountable, 1U
Width: 17.5 in
Depth: 18.1 in
Height: 1.8 in
Weight: 15.7 lbs
Memory
RAM: 256 MB
Flash Memory: 128 MB flash
Networking
Ports Qty: 24 x Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Transfer Rate: 1 Gbps
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol: RIP-1, RIP-2, EIGRP, HSRP, static IP routing, RIPng
Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH
Connectivity Technology: Wired
Communication Mode: Half-duplex, full-duplex
Switching Protocol: Ethernet
Status Indicators: Port status, link activity, port transmission speed, port duplex mode, power, system
Features: Hot swap module replacement, layer 3 switching, layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802
Expansion / Connectivity
Expansion Slots Total (Free): 1 ( 1 ) x expansion slot
Interfaces: 24 x network / power, Ethernet 10Base-T/100Base-TX/1000Base-T, RJ-45 , 1 x USB, 4 pin USB Type A , 1 x USB, mini-USB Type B , 1 x management, RS-232, RJ-45 , 1 x management, Ethernet 10Base-T/1
Miscellaneous
Rack Mounting Kit: Optional
MTBF: 181,370 hour(s)
Authentication Method: Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Compliant Standards: CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 N
Power
Power Over Ethernet (PoE): Yes
Power Device: Power supply, redundant , plug-in module
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with optional power supply)
Installed Qty: 1 (installed) / 2 (max)
Voltage Required: AC 120/230 V ( 50, 60 Hz )
Features: Redundant Power System (RPS) connector
Software / System Requirements
Software Included: Cisco IOS IP Base
Manufacturer Warranty
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty, lifetime , Limited warranty, power supply and fans, 5 years , Technical support, replacement , New releases update
Environmental Parameters
Min Operating Temperature: 23 °F
Humidity Range Operating: 5, 95%
